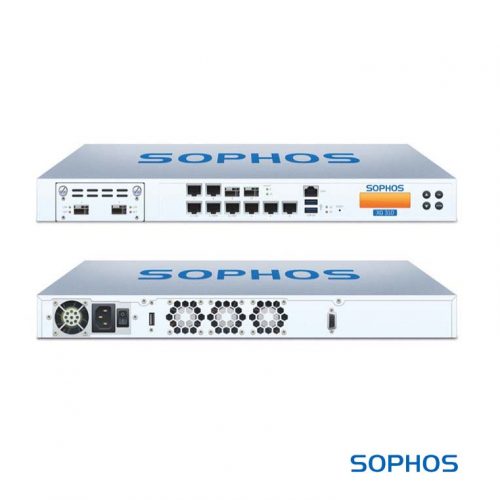

XG Series 1U XG 310

Sophos XG Firewall
Unrivalled simplicity, security and insight
Sophos XG Firewall brings a fresh new approach to the way you
manage your firewall, respond to threats, and monitor what’s
happening on your network. Get ready for a whole new level of
simplicity, security and insight. Based upon the award-winning Sophos SG Series, our XG Series firewalls come pre-loaded with the Sophos Firewall OS to provide optimal performance to meet today’s network security requirements.

Add to quote
SKU: 1ac2e879e93c Category: Tags: , ,

Description

Environment
Power consumption
XG 310: 29W, 99 BTU/hr (idle)
50W, 171 BTU/hr (full load)
XG 330: 33W, 113 BTU/hr (idle)
55W, 188 BTU/hr (full load)
Operating temperature
0-40°C (operating)
-20 to +70°C (storage)
Humidity  0%-90%, non-condensing

Product Certifications
Certifications
CB, CE, FCC Class A, IC,
VCCI, RCM, UL, CCC

Performance
Firewall throughput  25 Gbps
Firewall IMIX  8.53 Gbps
VPN throughput  2.5 Gbps
IPS throughput  5.5 Gbps
NGFW (IPS + App Ctrl +
WebFilter) max. 		 2.7 Gbps
Antivirus throughput (proxy)  3.3 Gbps
Concurrent connections  17,500,000
New connections/sec  200,000
Maximum licensed users  unrestricted

Physical interfaces
Storage (local
quarantine/logs)
  integrated SSD
Ethernet interfaces
(removable)
8 GE copper
2 GE SFP*
No. of FleXi Port slots  1
FleXi Port modules (optional)
8 port GE copper
8 port GE SFP*
2 port 10 GE SFP+*
4 port 10 GE SFP+*
4 port GE copper
LAN bypass
I/O ports
2 x USB 3.0 (front)
1 x USB 2.0 (rear)
1 x COM (RJ45)
(front)
1 x VGA (rear)
Display
Multi-function
LCD module
Power supply
Internal auto-
ranging
100-
240VAC, 50-60 Hz

Physical specifications
Mounting
1U rack mount
(2 rackmount ears included)
Dimensions
Width x Depth x Height
438 x 292 x 44mm
17.24 x 11.5 x 1.75 inches
Weight
5.2 Kg / 11.46 lbs (unpacked)
6.9 Kg / 15.21 lbs (packed)
